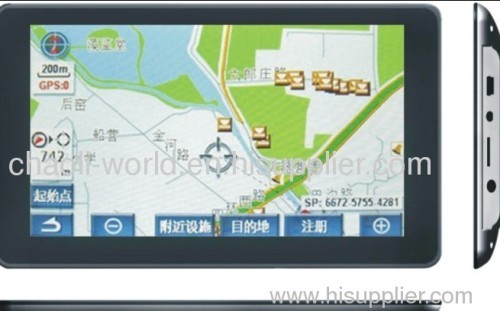

7inch car gps navigator(MP3,MP4,FM,BT,AV,ISDB-T)

Price:	60.0 USD
Payment Terms:	T/T,WU
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Air

Packing: gift box

Production Capacity: 50000pcs/month

Delivery Date: asap

7inch car gps navigator (MP3,MP4,FM,BT,AV,ISDB-T )

7.0 inch TFT screen, resolution: 800*480 with FM transmittter,av-input fnction, bluetooth is optional

Stereo earphone, built-in high quality 1.2W speaker, and the volume is adjustable

With both button and touch screen

Built-in high sensitive MT3328 GPS module

With built-in GPS antenna

The navigating firmware in the SD card can be run directly (support 4 bit middle and high speed SD card)

With MP4/MP3 function

With built-in lithium battery and 5V charging voltage; also can use car lighter to charge the machine

Double displaying system can support both LCD and CVBS output

Video playing format: ASF, AVI, mp4, WMV

Audio playing format: mp3, wav, mid

Photo format: BMP, JPG, PNG, GIF;

Text format: TXT

Double indication light: one (blue) is working indication, which is blue when working and turn of when it is in "sleep" condition; the other is indicate charge condition, when charge the yellow light will on, and turn green when well charged

LCD brightness is adjustable

Size	125mm(L)90mm(W)12mm(H)
Working temperature	-10℃ to +70℃
Keeping temperature	-40℃ to +80℃
Working humidity	45% to 80%RH
Keeping humidity	30% to 90%RH
Air pressure	860MBar ~ 1060Mbar
CPU frequency	468MHZ
Chipset	MT3351,ARM1176JZ-S CORE
SDRAM	128MB
Memory size	64MB
Navigation firmware storage	SD card or built-in NAND FLASH
Operating system	WINCE 5.0 NET
Firmware editor	ARMV4
Video output type	CVBS, PAL/NTSC
Video output voltage	1.0Vpp/75ohm
Screen size	7.0 inch
Screen resolution	800*480
Audio output	Compound audio track, CD player sound effect
Sound power	Stereo track: 0.25W/CHANEL, single track ohm/1W
Average power	6W
"Sleep" power	<24mW
Dc input voltage	5V
Power	External power
Receiving module	MT3328
Frequency	1.575GHZ
C/A CODE	1.023 MHZ chip rate
Signal channels	20 channels
Sensitivity	-159dBm
Position accuracy	10m, 2D RMS 5m, 2D RMS, WAAS enable
Speed rate	0.1m/s
Data upgrading rate	1HZ
Signal missing time	0.1s in average
Warm boot time	1s in average
Cool boot time	38s in average
Cold boot time	42s in average
Maximum position altitude	18,000m
Maximum speed rate	515m/s
Acceleration	< 4g
Built-in antenna type	Built-in power porcelain antenna
Magnified effect of the built-in antenna	27dB
Voltage of the built-in antenna	3.3V±5%
Current of the built-in antenna	15mA
Outside antenna port	MMCX
Outside antenna voltage	3.3V±5%
Magnified effect of the outside antenna	27dB
Current of the outside antenna
